Other information / specs

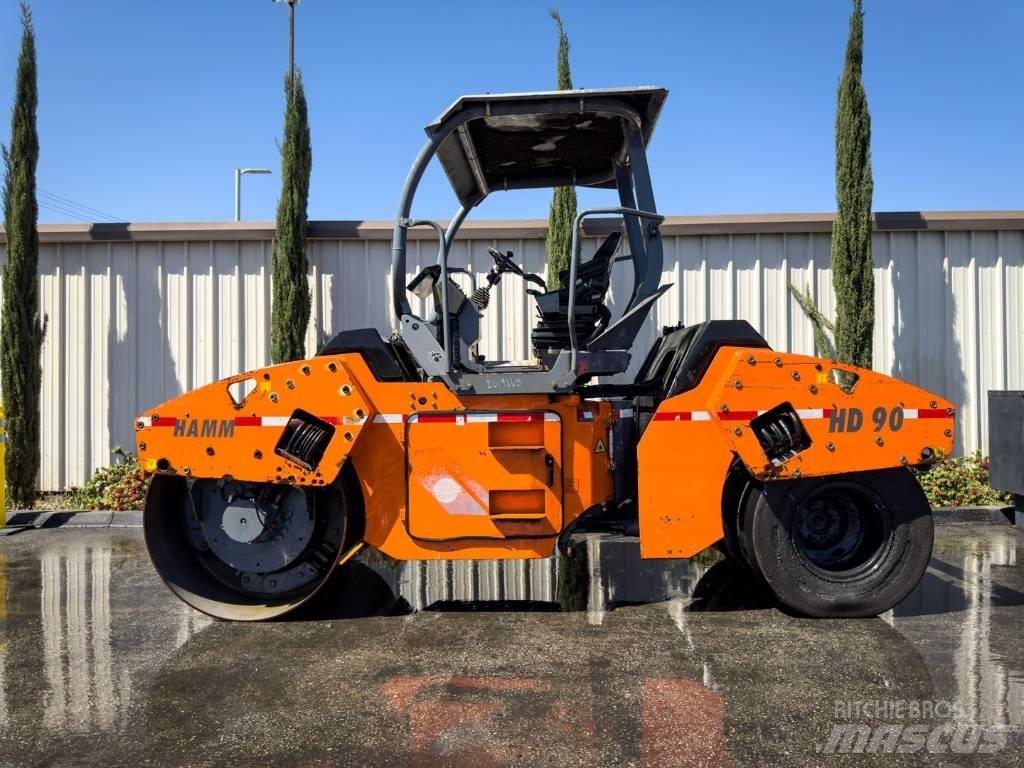

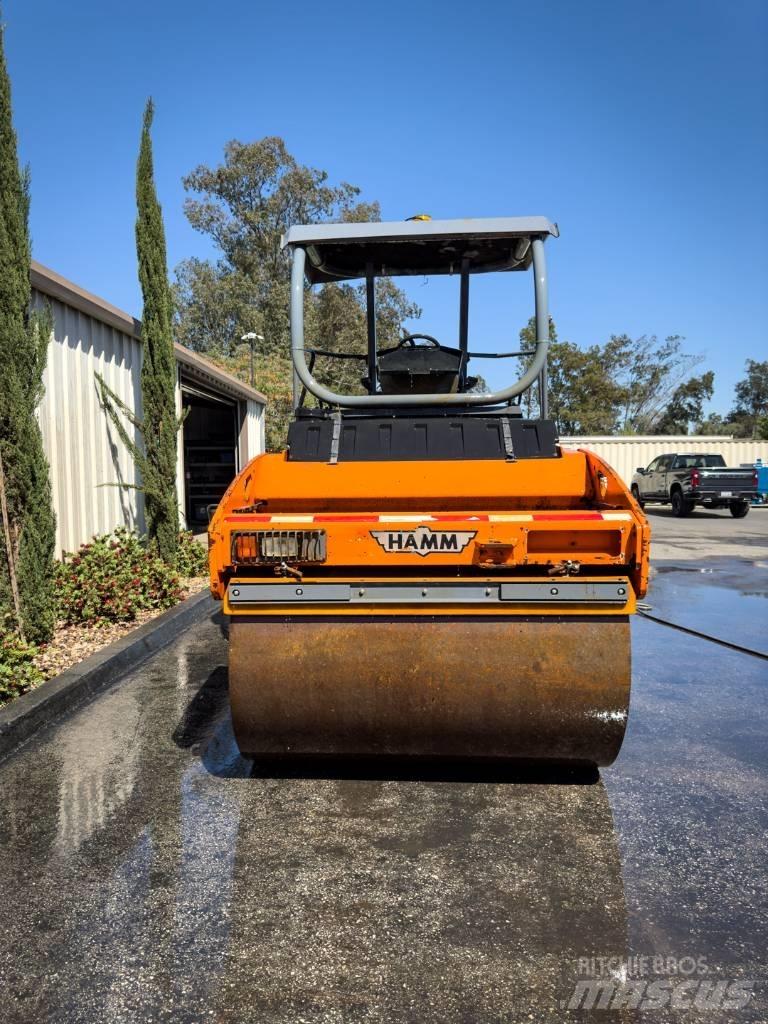

2010 HD 90K Tandem combination roller with vibrating roller drum and set of tires, four cylinders, Deutz Diesel, TIII, 1,644 original hours, Ex Municipal Unit in excellent condition. 2 drive levers, Amplitude switchable: large & small, Handrails, Lighting package as per road traffic regulations, Operator’s platform with entry from both sides, Speedometer, Seat-operating unit, rotatable, with armrests and safety belt, Vibration front and rear, switchable single and doubled, Handrails on the Operator’s platform Unit is in the shop, being inspected, cleaned and serviced. After that, the unit will be ready to go to work!
Details
-Year: 2010
-Make: Hamm
-Model: HD 90 K
-Hours: 1644
-Hours Meter: Accurate & Verified
Features
-HD 3 - point articulation for even weight distribution and excellent on-center feel.
-Simple, intuitive, and language-neutral operation.
-Ergonomic driver platform with rotatable seat operating unit and adjustable driver's seat.
-Excellent view of the construction site.
-Track offset for comfortable start-up, moving away, and compacting at curb edges.
Specifications
Engine
-Make: Deutz
-Model: TCD2012 L04
-Engine Tier: USA Tier 3
-Fuel Type: Diesel
-Horsepower:134 HP
Powertrain
-Max Speed:9.2 mph
Drum & Tires
-Operating weight: 18,926 lb
-Number of Tires: 4
-Drum Width: 66”
-Drum Diameter: 47.2”
-Split Drum: Yes
-Vibratory Drum: Yes
-Water System: Yes
-Centrifugal Force – High:16,860 lb
-Variable Amplitube: Yes
-Variable Frequency: Yes
-Tire Skirt: Yes
Capacities
-Fuel Capacity: 33 gal
-Additive Capacity: 5.8 gal
-Water Capacity: 185 gal
Chassis
-Gradeability High: 40
-Tire % Remaining: 90
-Articulating: Yes
Exterior
-ROPS: Open
-FOPS: Yes
Attachments
-Cleaner Bar: Yes
-Mats: YesShow more
