Putzmeister M46-5

Price excl. VAT

Images58Videos1

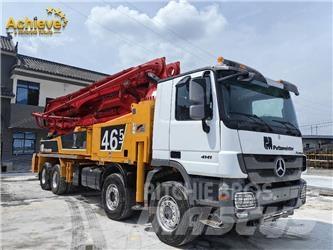

Putzmeister M46-5 Concrete pumps
Putzmeister M46-5 Concrete pumps
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Product group
Concrete pumps
Brand / model
Putzmeister M46-5
Year of Mnftr
2013
Usage hours
3 000 h
Condition
Reconditioned,Remanufactured
Country
China
General grade
1
2
3
4
5
Mascus ID
FF862F64

PRICING

Currency Converter

DETAILS

Internal stock No.
AICPT016
Number of boom sections
5
Latest inspection/checkup date
2024-09-26
Gross Weight
32 000 kg
Boom length
300 cm
Max horizontal reach
4 110 cm
Max vertical reach
4 610 cm
Movement type
Static
Pump power type
Diesel
Pump power
300 kW
Transport dimensions (LxWxH)
11850 x 2500 x 4000 mm
Emission class
Stage V / Tier V
Engine manufacturer
Ergonic3. EU Version
Pump type
Piston
Chassi manufacturer
Mercedes Benz
Tyre brand
Mercedes Benz
Delivery terms
FOB, CIF
Certificates
EPA, CE, TÜV
Attachments
Technical Details General Information Arms 5 Folding Type RZ-Folding Vertical Reach 46.1 m Horizontal Reach gross 41.1 m Horizontal Reach net 38 m Reach Depth 32.4 m Unfolding Height 11.1 m Slewing Range 365 degree End Hose - Length 3 m Delivery Line (DN, Pressure) DN125/5.5 / mm/bar Support width Standard (front-rear) 8.4 / 9.3 m Support width OSS (front-rear) 5.6 / 6.9 m Support width iSC (front/rear) 2.6-8.4 m Length x Width x Height 11.85 x 2.5 x 4 mm Total Weight (approx.) under 32000 kg Configuration Concrete Pump .19 iLS Concrete Pump .17 iLS Concrete Pump .16 H LS Concrete Pump .16 H Delivery Cylinder Diameter - Stroke Length 250/2100 mm Output (piston side) 190 m³/hr Delivery Pressure (piston side) 85 bar Strokes (piston side) 30
Other information / specs
If you are looking for a lightweight, high performance machine on 4 axles — the truck-mounted concrete pump M47-5 is built for you. Weighing less than 32 t, the 47-5 is one of the lightest in its class and provides a more than sufficient payload reserve. It is ideal for application at medium to large sized sites as well as job sites that offer challenging setup situations. Different small support Options available: Europe: ISC with permanent check of permitted arm positions and working ranges Outside Europe: OSS (One Side Support) The new fully flexible outrigger together with the intuitive Ergonic 3.0 control gives you all the freedom you need when space on the construction site is tight again. Key Features Below 32 t total weight Smooth 5-section-boom with Roll Z-Folding TRDI-Support for compact support area, fast setting up, relieved framework and difficult setup situations (iSC and OSS, One Side Support optional) Efficient work with Ergonic 3.0 operating system ReducShow more
