INFO

Product group
Crawler dozers
Brand / model

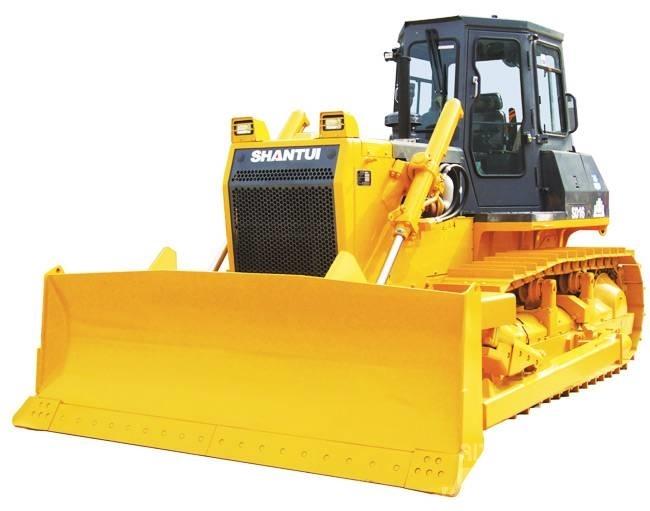

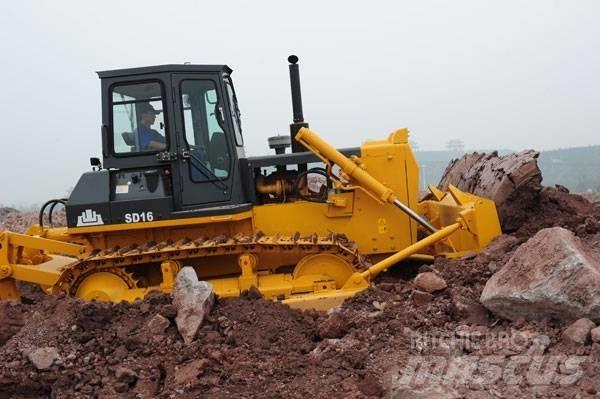

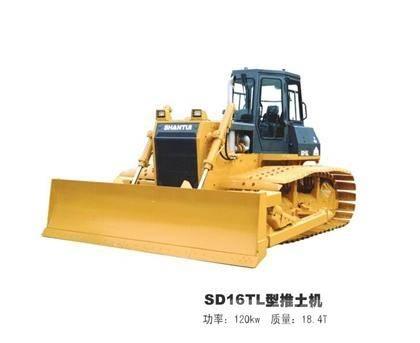

Shantui SD16
Year of Mnftr
2019
Usage hours
5 h
Condition
New/unused
machine whereabouts
Jining
Country
China
General grade
1
2
3
4
5
Mascus ID
276713C6

DETAILS

Latest inspection/checkup date
yes
Full service history
Yes
Gross Weight
17 000 kg
Blade type
Straight blade
Undercarriage
Tracked
Cabin type
Enclosed cab
Emission class
Stage II / Tier II
Engine
Shangchai SC11CB184G2B1/ Weichai WD10G178E25
engine capacity
120 kW (163 hp)
Track width
510 mm
Transmission
SHANTUI
Transport dimensions (LxWxH)
5262000 x 3388000 x 3032000 mm
Original colour
Yellow
Condition info/guarantee
yes
Production country
China
Delivery terms
FOB, CFR, CIF, EXW
Attachments
Ripper for option
Accessories
Air conditioning
Air conditioner
Other information / specs
ITEM UNIT SD16 L×W×H (Ripper not included) mm 6880×4130×3725 Operating weight (Ripper not included) t 17 Engine - Shangchai SC11CB184G2B1/ Weichai WD10G178E25 Rated power kW/rpm 120/1850 Gradeability ° 30 Blade type - Straight tilt blade U blade Angle blade Blade width mm Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 Dozing capacity m3 Straight tilt blade 4.5 U blade 5 Angle blade 4.3 Ma× drop below ground of blade mm 540 Lift height of blade mm 1095 Ripper type - Three-shank ripper Ripping depth of ripper mm 572 Lifting height of ripper mm 592 Number of carriers (each side) - 2 Number of track rollers (each side) - 6 Number of track shoes (each side) - 37 Width of track shoe mm 510 Track gauge mm 1880 Ground length and ground pressure mm/MPa 2430-0.067 Pitch mm 203.2 Forward speed km/h 0–3.29 0–5.82 0–9.63 Reverse speed km/h 0–4.28 0–7.59 0–12.53Show more

Jining Haoduo Import and export co., Ltd.

Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 China
