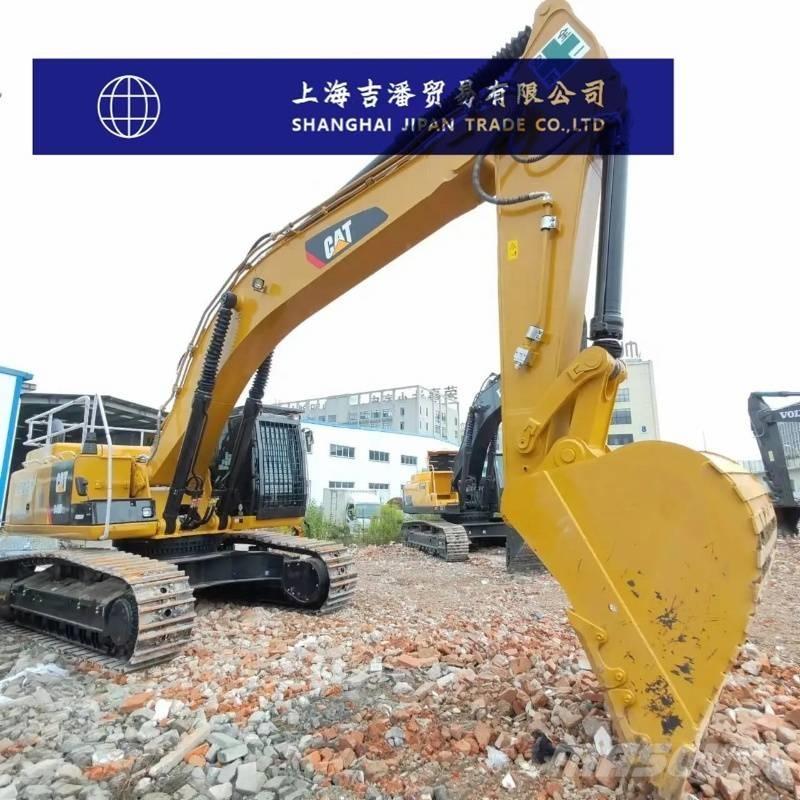

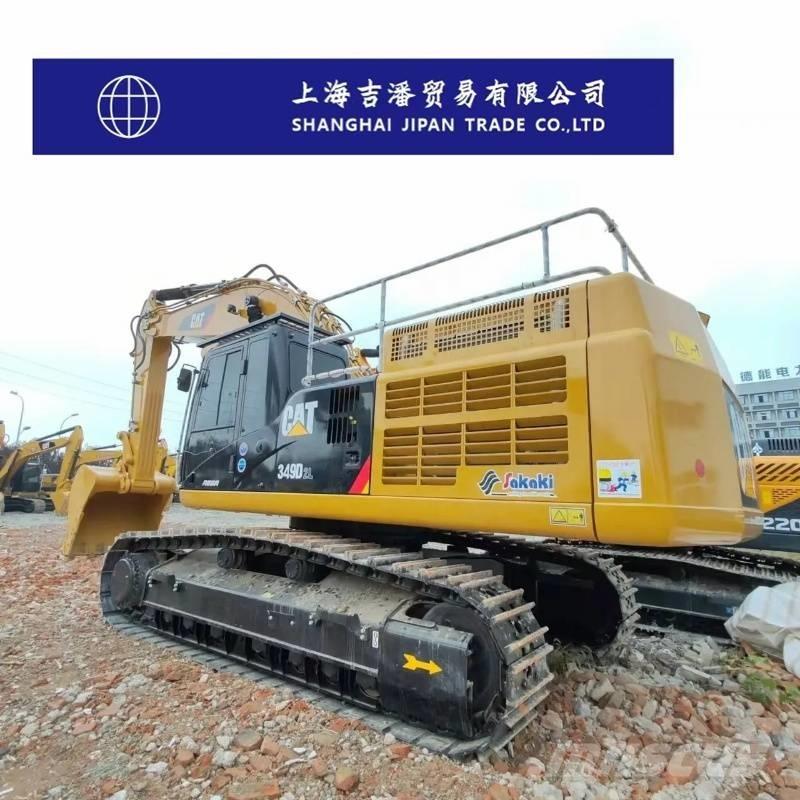

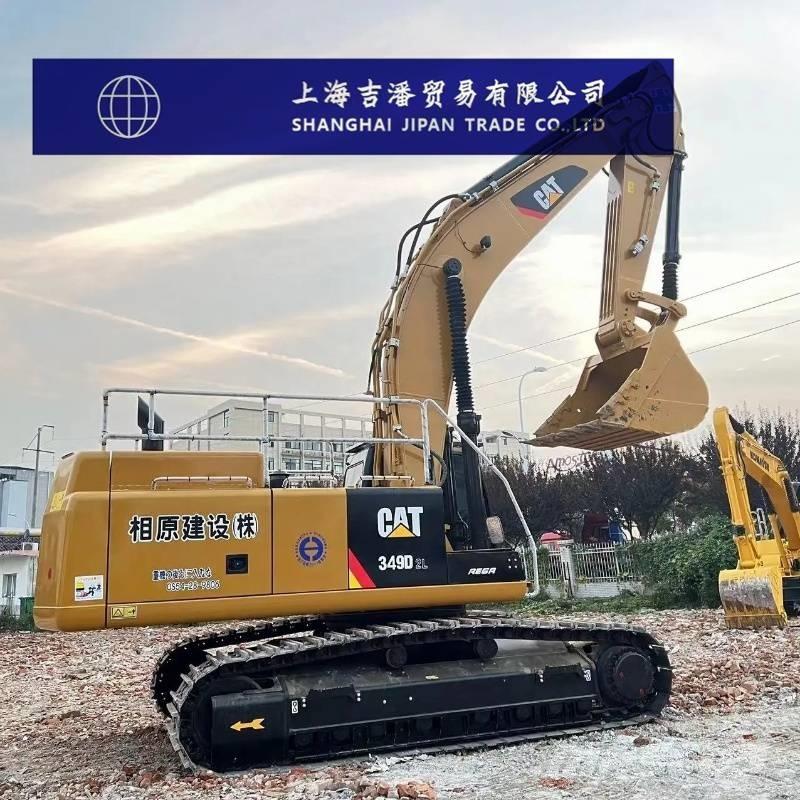

CAT 349 D L
Price excl. VAT
Print
INFO
Product group
Crawler excavators
Brand / model
CAT 349 D L
Year of Mnftr
2025
Usage hours
890 h
Country
China
General grade
1
2
3
4
5
Mascus ID
69D43FBC
PRICING
Currency Converter
DETAILS
Internal stock No.
1
Power type
Diesel
Manufacturing number
1
Amount of previous owners
1
Latest inspection/checkup date
2025-08-19
Undercarriage condition
good condition
Engine
Original
Gross Weight
48 200 kg
engine capacity
303 kW (412 hp)
Engine manufacturer
Caterpillar
Registration number
1
Emission class
Stage V / Tier V
Bucket capacity
2,60 m3
Track width
750 mm
Top speed
4,80 km/h
Transport dimensions (LxWxH)
11920 x 3230 x 5370 mm
Original colour
Yellow
Dipper / stick length
3 350 mm
Condition info/guarantee
1 year
Production country
China
Delivery terms
FCA, CPT
Certificates
EPA, CE
Attachments
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
line rupture valve boom
line rupture valve dipper
Air conditioning
Engine pre-filter
Skeleton bucket
rotating beacon
extra equipment
joystick control
standard digging bucket
Other information / specs
卡特彼勒新一代CAT®349 液压挖掘机 参数配置
规格
动力传统动力
厂商合资/进口
铲斗反铲
吨位(吨)49
整机工作重量(kg)48200
铲斗容量(m³)2.6
动臂长度(mm)6900
斗杆长度(mm)3350
性能
回转速度(rpm)8.44
回转扭矩(Nm)187
行走速度(km/h)4.8
铲斗挖掘力(kN)229
斗杆挖掘力(kN)193
最大牵引力(kN)335
动力系统
发动机型号Cat C13
额定功率(kw/rpm)303/1800
排量(L)12.5
缸径×行程(mm)130*157
液压系统
主泵最大流量(l/min)389x2
工作液压油路(Mpa)35
行走液压回路(Mpa)26
回转液压回路(Mpa )35
油类容量
燃油箱(L)715
液压油箱(L)217
液压系统(L)550
发动机油更换量(L)40
冷却液(L )52
主体尺寸
运输总长度(mm)11920
运输总高度(mm)3230
履带总长度(mm)5370
履带轨距(mm)2740
最小离地间隙(mm )475
配重离地间隙(mm)1280
支重轮中心间距(mm)4360
后端回转半径(mm )3760
作业范围
停机面最大挖掘半径(mm)11770
最大挖掘深度(mm)7700
最大挖掘高度(mm)10730
最大卸载高度(mm)7390
最大垂直挖掘深度(mm)5440
