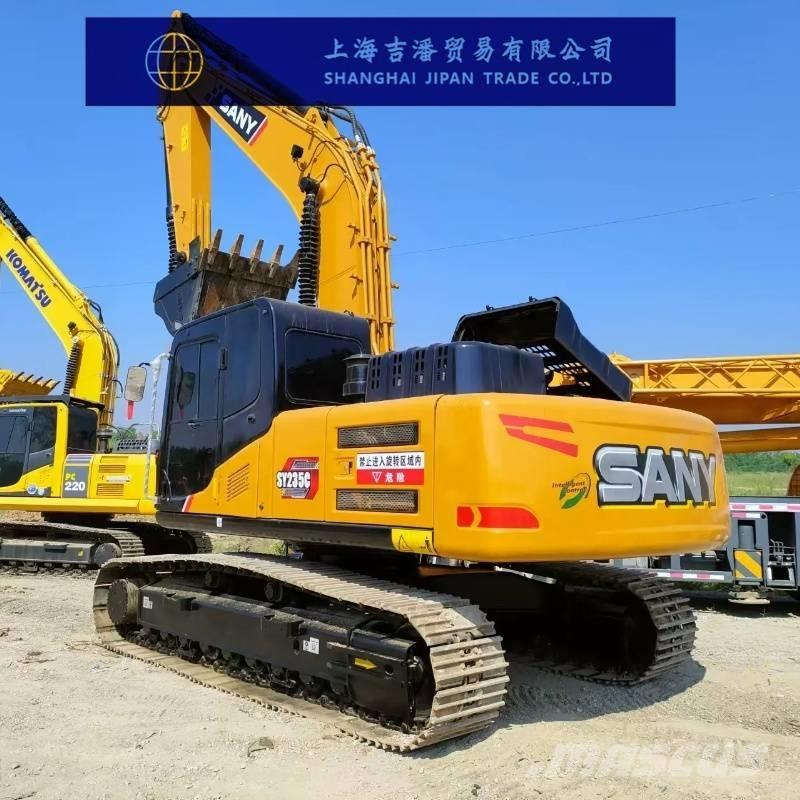

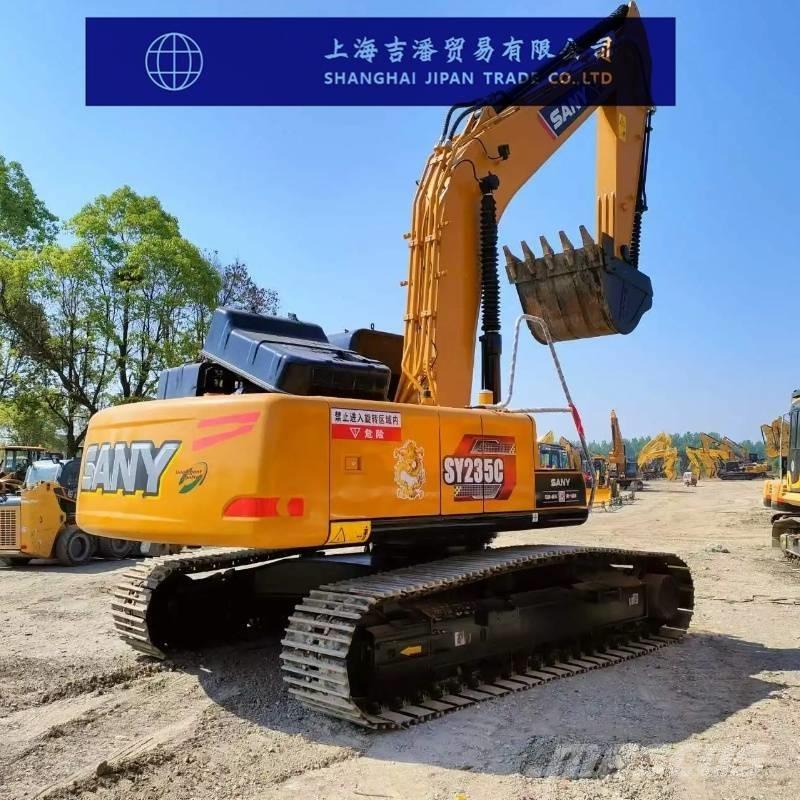

Sany SY 235 C
Price excl. VAT
Print
INFO
Product group
Crawler excavators
Brand / model
Sany SY 235 C
Year of Mnftr
2024
Usage hours
980 h
Country
China
General grade
1
2
3
4
5
Mascus ID
432CAEAF
PRICING
Currency Converter
DETAILS
Internal stock No.
1
Power type
Diesel
Manufacturing number
1
Amount of previous owners
1
Latest inspection/checkup date
2025-08-18
Undercarriage condition
good condition
Engine
Original
Gross Weight
24 200 kg
engine capacity
129 kW (175 hp)
Engine manufacturer
SANY
Registration number
1
Emission class
Stage V / Tier V
Bucket capacity
1,10 m3
Track width
600 mm
Top speed
5,50 km/h
Transport dimensions (LxWxH)
9920 x 2980 x 3550 mm
Original colour
Yellow
Dipper / stick length
3 200 mm
Condition info/guarantee
1 year
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
line rupture valve boom
line rupture valve dipper
Air conditioning
Engine pre-filter
Skeleton bucket
rotating beacon
extra equipment
joystick control
standard digging bucket
Other information / specs
三一重工SY235C-9挖掘机 参数配置
规格
整机工作重量(kg)24200
铲斗容量(m³)1.1(可选1.1~1.2)
原产地上海
吨位(吨)23
厂商国产
动力传统动力
铲斗反铲
厂商国产
动力传统动力
性能
回转速度(rpm)11
行走速度(km/h)5.5/3.5
爬坡能力(%)70%/35°
接地比压(Kpa)47.6
铲斗挖掘力(kN)175
斗杆挖掘力(kN)122
动力系统
发动机型号ISUZU 6BG1
额定功率(kw/rpm)128.5/2100
气缸数(个)6缸
工作形式四冲程六缸涡轮增压直喷发动机
主体尺寸
运输总长度(mm)9920
运输总宽度(mm)2980
运输总高度(mm)3550
驾驶室全高(mm)2990
上车宽度(mm)2710
履带接地长度(mm)3640
履带总长度(mm)4445
履带板宽度(mm)600(可选800/700)
履带总宽度(mm)2980
履带轨距(mm)2380
最小离地间隙(mm )440
前段工作装置最小回转半径(mm)3800
最小回转半径时的最大高度(mm)7940
后端回转半径(mm )2890
作业范围
最大挖掘半径(mm)10150
最大挖掘深度(mm)6785
最大挖掘高度(mm)9640
最大卸载高度(mm)6725
最大垂直挖掘深度(mm)5845
