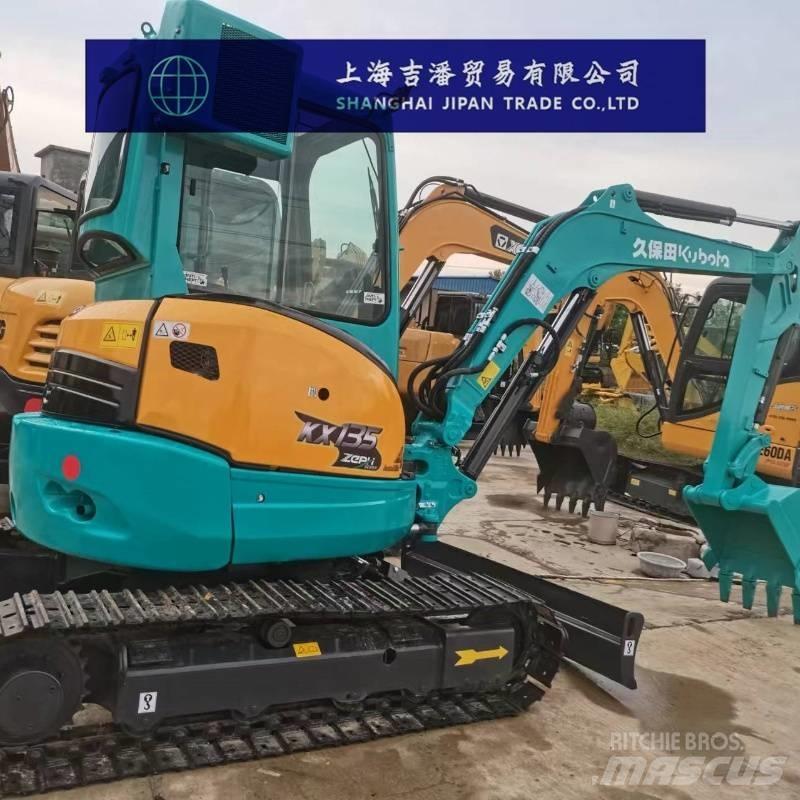

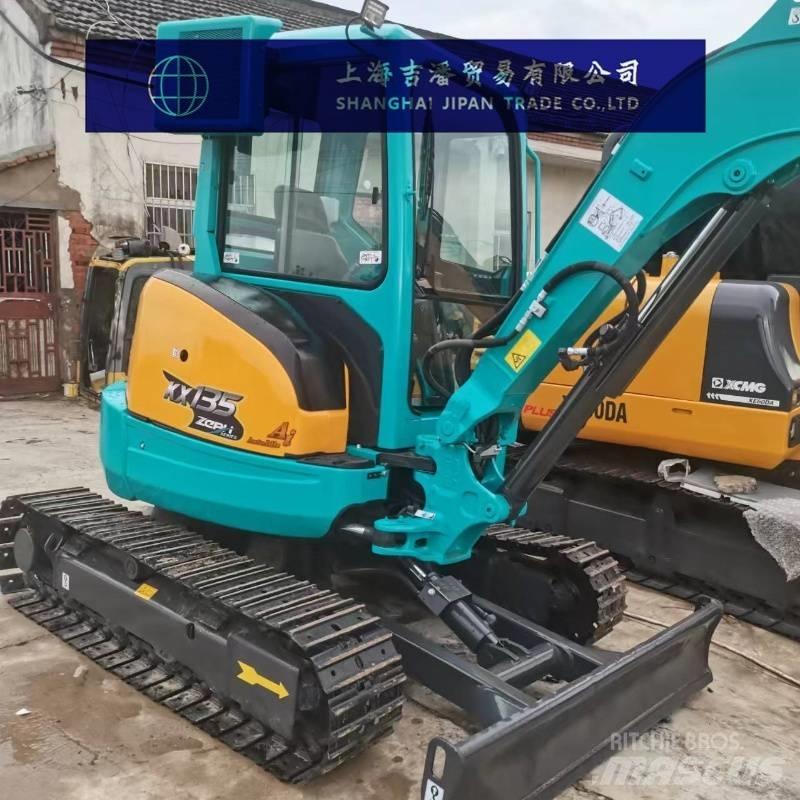

Kubota KX 135

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Kubota KX135 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)3 The working weight of the entire machine (kg) is 3590 Bucket width (mm) : 600/550 Bucket capacity (m³)0.11 Origin: Japan Performance Rotational speed (rpm) : 8.9 Walking speed (km/h)3.0/4.6 Climbing ability (%)60 Bucket digging force (kN) : 27.6 Power system Engine model: Kubota D1703-E2 Rated power (kw/rpm)21/2250 Displacement (L)1.647 Hydraulic system The main pump type is variable pump ×2+ gear pump The rotary hydraulic motor type is a piston hydraulic motor The type of walking hydraulic motor is a piston hydraulic motor Oil capacity Fuel tank (L)40 Main body size The total length of transportation (mm) is 4665 The total transportation width (mm) is 1700 The total transportation height (mm) is 2440 The total height of the cab (mm) is 2440 The total length of the track (mm) is 2100 Track plate width (mm) : 300 The total width of the track (mm) is 1700 Track gauge (mm) : 1400 Minimum ground clearance (mm) : 290 The minimum turning radius (mm) of the front working device is 1960/1570 The rear end turning radius (mm) is 850 Scope of work Maximum excavation radius (mm) : 5265 The maximum excavation radius of the shutdown face (mm) is 5150 Maximum excavation depth (mm) : 3135 Maximum excavation height (mm) : 4730 Maximum unloading height (mm) : 3320 Maximum vertical excavation depth (mm) : 2510 Boom rotation Angle (left/right °)70/50 The width × height (mm) of the bulldozer board is 1700×335 The bulldozer shovel lifts or deepens (mm)370/370
