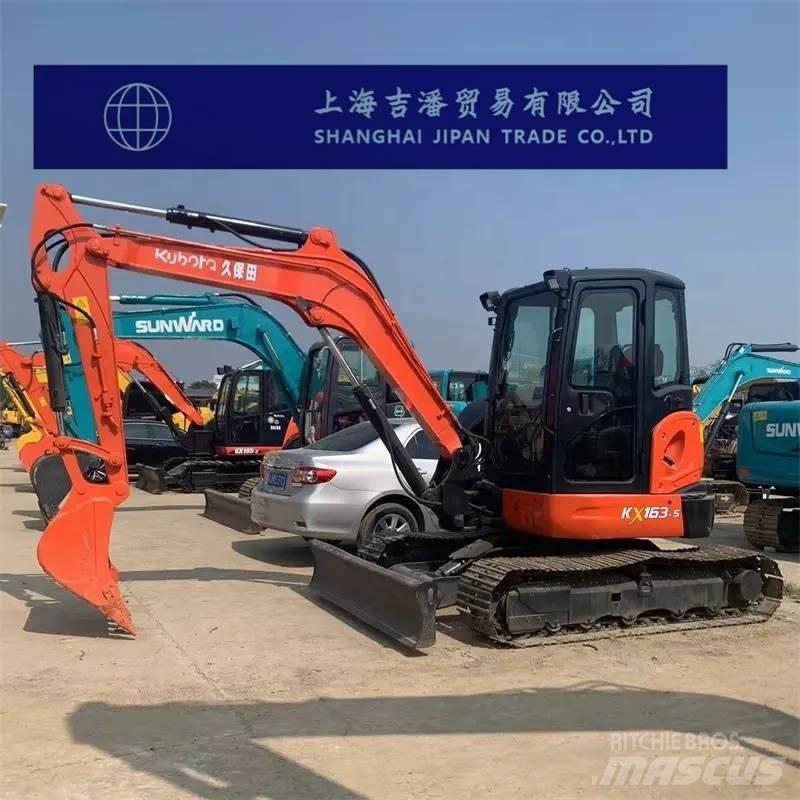

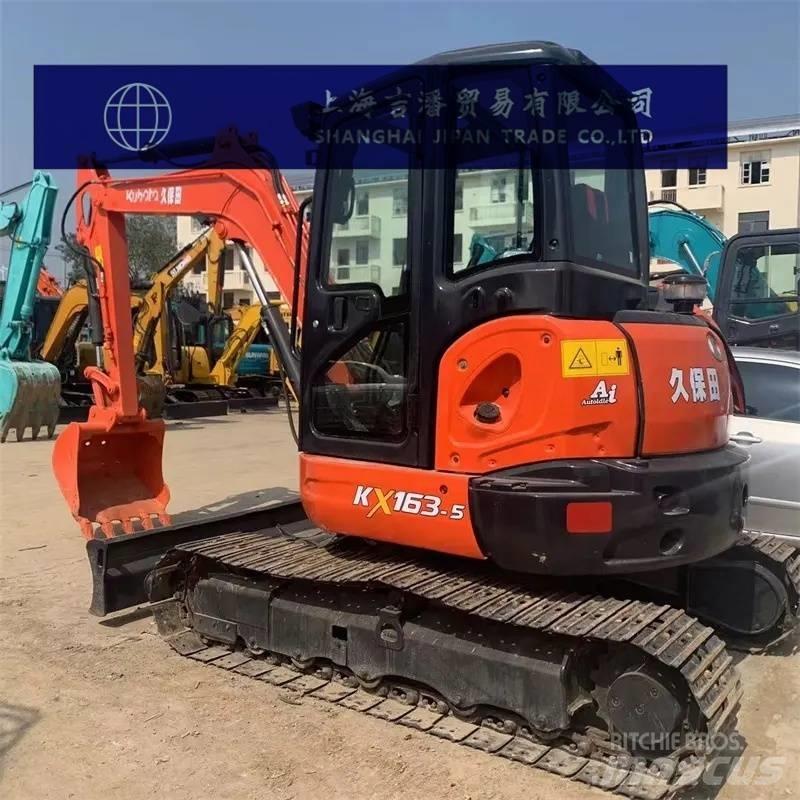

Kubota KX 163-5
Price excl. VAT
Print
INFO
Product group
Mini excavators < 7t
Brand / model
Kubota KX 163-5
Year of Mnftr
2023
Usage hours
600 h
Country
China
General grade
1
2
3
4
5
Mascus ID
D712971F
PRICING
Currency Converter
DETAILS
Internal stock No.
1
Manufacturing number
1
Power type
Diesel
Latest inspection/checkup date
2025-06-26
Amount of previous owners
1
Undercarriage condition
Good Condition
Gross Weight
5 595 kg
Registration number
1
Emission class
Stage V / Tier V
Track width
400 mm
Bucket capacity
0,22 m3
Transport dimensions (LxWxH)
5500 x 1960 x 2550 mm
Original colour
Original
Engine
Original
engine capacity
35,5 kW (48,3 hp)
Engine manufacturer
Original
Condition info/guarantee
1 Year
Production country
Japan
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Twig wire box
Air conditioning
Additional hydraulics
rubber track
Engine pre-filter
Skeleton bucket
rotating beacon
diesel heater
joystick control
standard digging bucket
cable bucket
Other information / specs
Kubota KX163-5 excavator parameter configuration
Specification
Power, traditional power
Joint venture/import by manufacturers
Bucket backhoe
Tonnage (tons)6
The overall working weight of the machine (kg) is 5595
Bucket width (mm)680/630
Bucket capacity (m³)0.22
Origin: Japan
Performance
Rotational speed (rpm)9.3
Walking speed (km/h) : 2.7/4.6
Bucket digging force (kN)40.1
Power system
The engine model is Kubota V2607-E3
Rated power (kw/rpm)35.5/2200
Displacement (L) : 2.615
The working form is direct spray
Hydraulic system
The main pump type is variable pump ×2+ gear pump ×2
Rotary hydraulic motor type plunger hydraulic motor
Walking hydraulic motor type plunger hydraulic motor, 2F
Oil capacity
Fuel tank (L)68
Main body size
Total transportation length (mm) : 5500
Total transportation width (mm) : 1960
Total transportation height (mm) : 2550
The total length of the track (mm) is 2500
Track plate width (mm)400
Track gauge (mm) : 1560
Minimum ground clearance (mm)310
The minimum turning radius (mm) of the front-end working device is 2460
The rear end rotation radius (mm) is 1045
Scope of work
Maximum excavation radius (mm) : 6140
The maximum excavation radius (mm) of the shutdown surface is 6005
Maximum excavation depth (mm) : 3690
Maximum excavation height (mm) : 5685
Maximum unloading height (mm) : 3950
The maximum vertical excavation depth (mm) is 2670
Width × height (mm) of the earthmoving board: 1960*410
Bulldozer lift or push depth (mm)440/410
