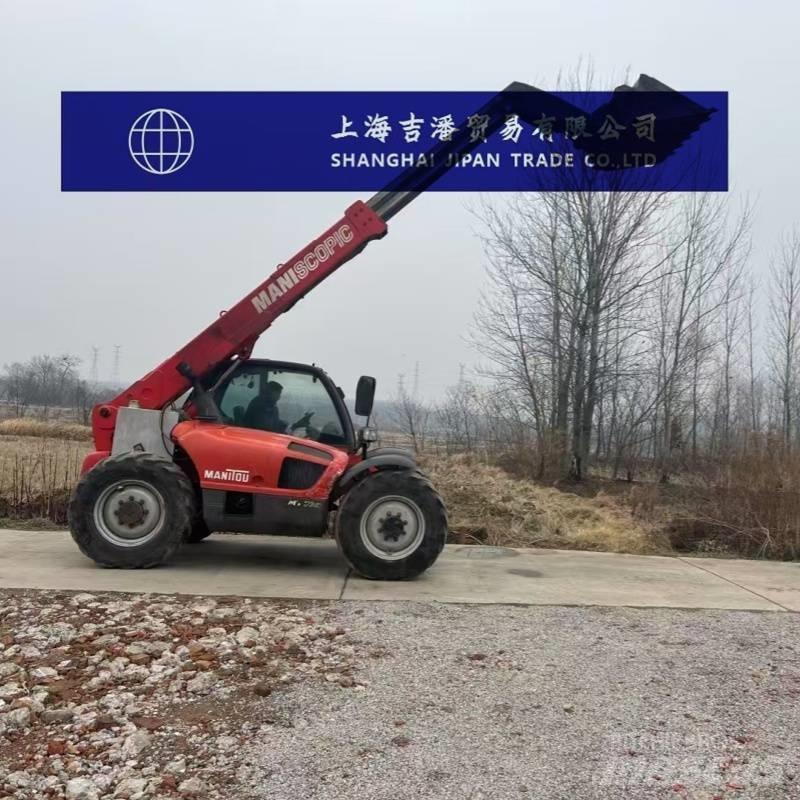

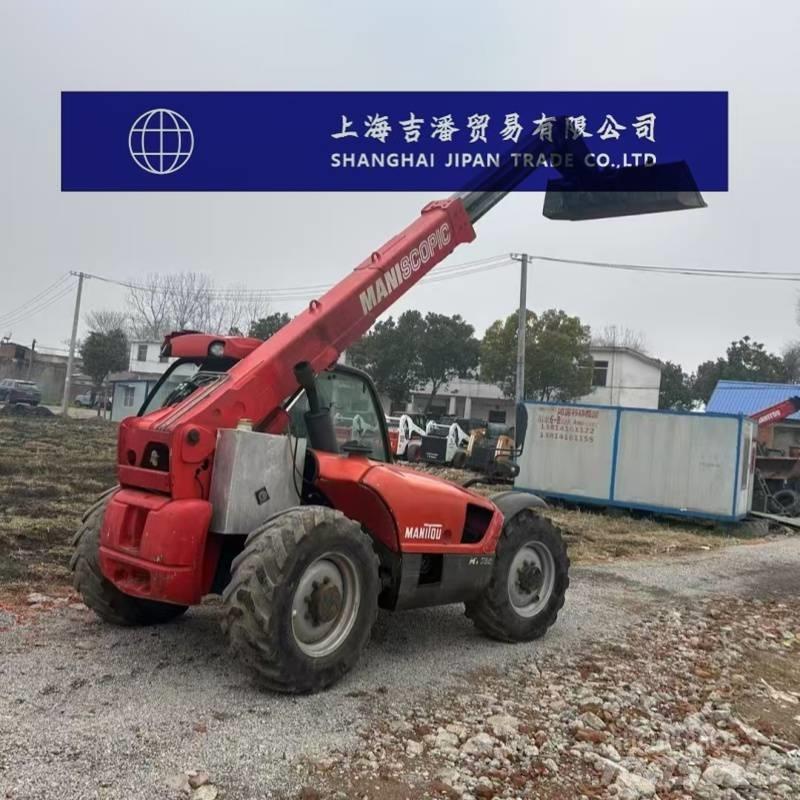

Manitou MT 732
Price excl. VAT
Print
INFO
Product group
Telescopic handlers
Brand / model
Manitou MT 732
Year of Mnftr
2013
Usage hours
3 322 h
Country
China
General grade
1
2
3
4
5
Mascus ID
06AD8EBF
PRICING
Currency Converter
DETAILS
Power type
Diesel
Type
Rotating
traction sort
4x4
Latest inspection/checkup date
2025-02-12
Amount of previous owners
1
Gross Weight
7 250 kg
Maximum lift capacity
3 500 kg
Registration number
1
Maximum lift height
6,90 m
Cabin type
Enclosed cab
Emission class
Stage V / Tier V

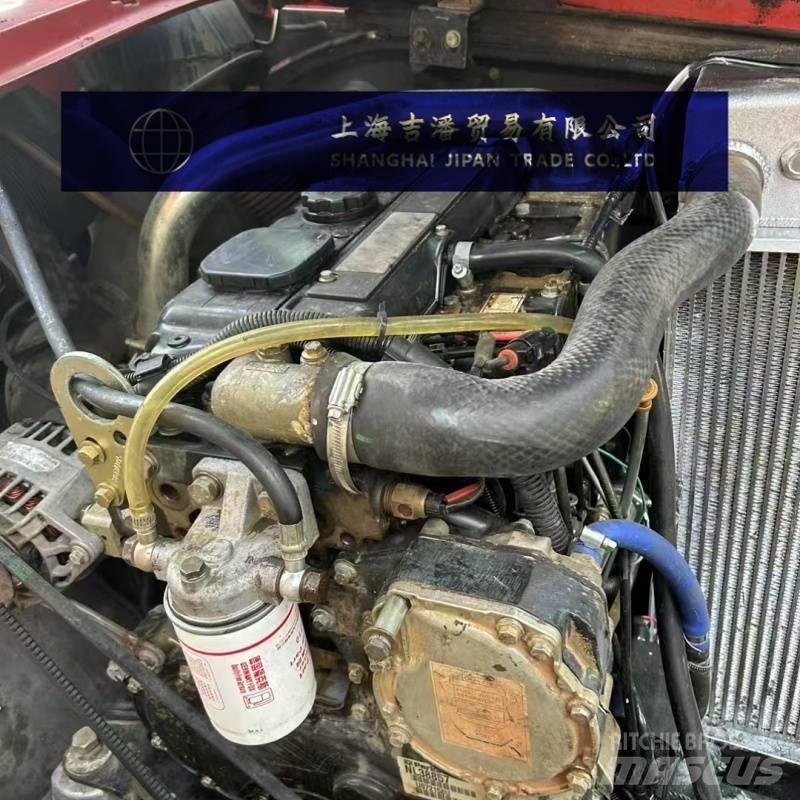

Engine
1104C-44
Body type
Fixed frame
engine capacity
61,5 kW (83,6 hp)
Engine manufacturer
Perkins
Transmission
Original
Engine displacement
4 400 cm3
Tyre size
Original
Original colour
Original
Output of the auxiliary hydraulics
105 l/min
Transport dimensions (LxWxH)
5967 x 4767 x 2550 mm
Reach at max load
4,16 m
Condition info/guarantee
1 Year
Front tyres / undercarriage remaining
98%
Rear tyres remaining
2%
Production country
France
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Accessories
forks
Air conditioning
Stabilizer
Additional hydraulics
bucket
Other information / specs
曼尼通MT732伸缩臂叉车 参数配置
基本性能
发动机功率(kW)61.5/2200
操作重量(千克)7250
额定载荷(kg)3200
马力(马力)100马力以下
最大载荷(公斤)3500公斤以下
作业参数
最大提升能力(kg)3200
举升角度范围 最低/最高(°)-0.047619048
最大提升高度(m)6.9
最大外伸长(m)4.16
卸载距离(最大高度处)(mm)1.15
最大外伸长倾翻载荷(kg)1620
转弯半径(m)4805
发动机
型号珀金斯Perkins 1104C-44
额定功率(kw/rpm)61.5/2200
最大扭矩(N.m)302/1400
排量(L)4.4
液压系统
系统最大工作压力(bar)240
系统最大流量(L/min)105
传动系统
轮胎尺寸400/80-24 156 A8 TL
油类容量
燃油箱(L)120
机油油箱(L )10.5
发动机冷却液(L)18.5
变速箱油(L)15.5
液压系统(L)125
外形尺寸
整机全长(mm)5967
整机全长(mm)4767
整机全宽(mm)2261
整机全高(mm)2550
驾驶室高(mm)2300
方向盘离地高(mm)1690
轴距(mm)2560
轮距(mm)1846
离地间隙(mm)440
离去角(°)53
