Other information / specs

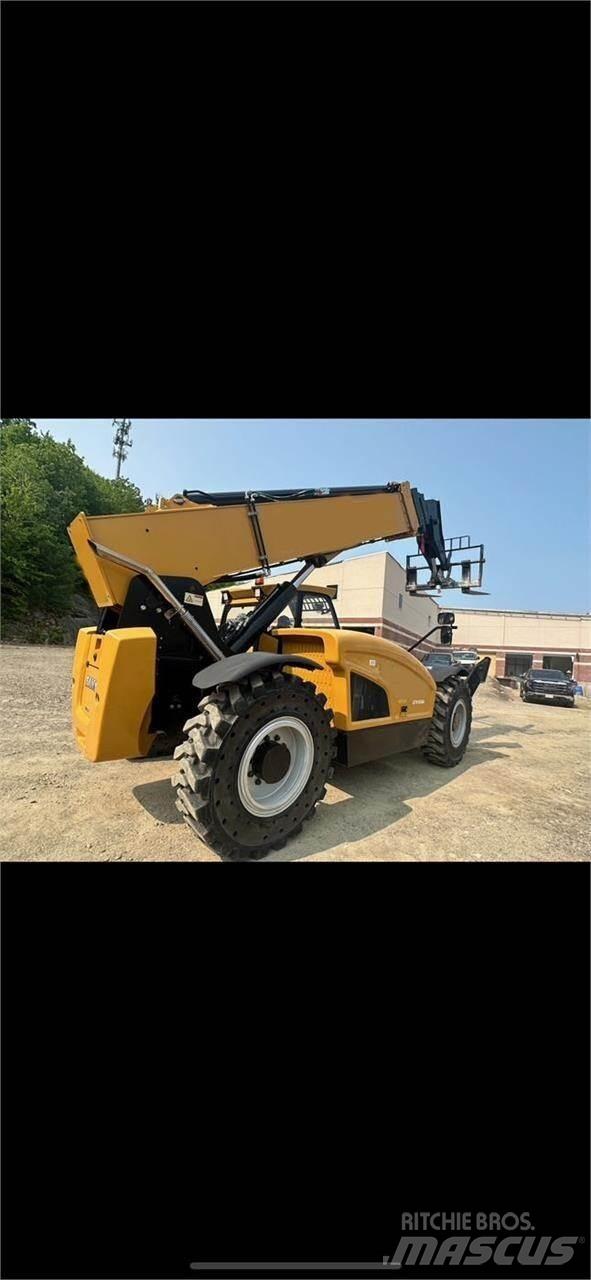

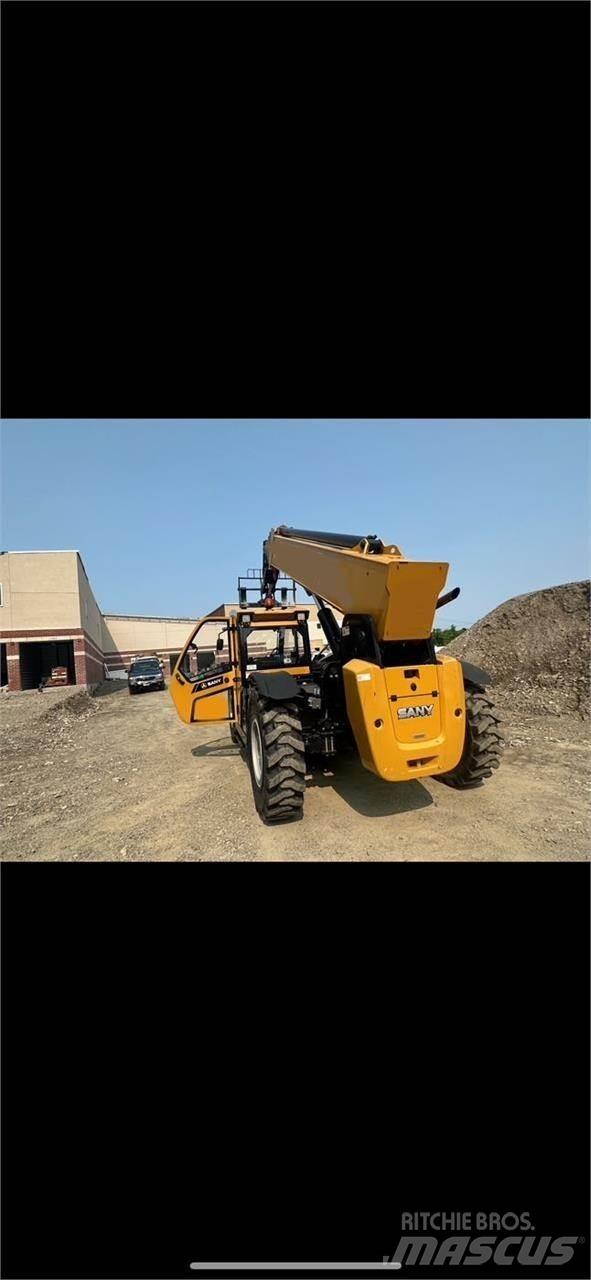

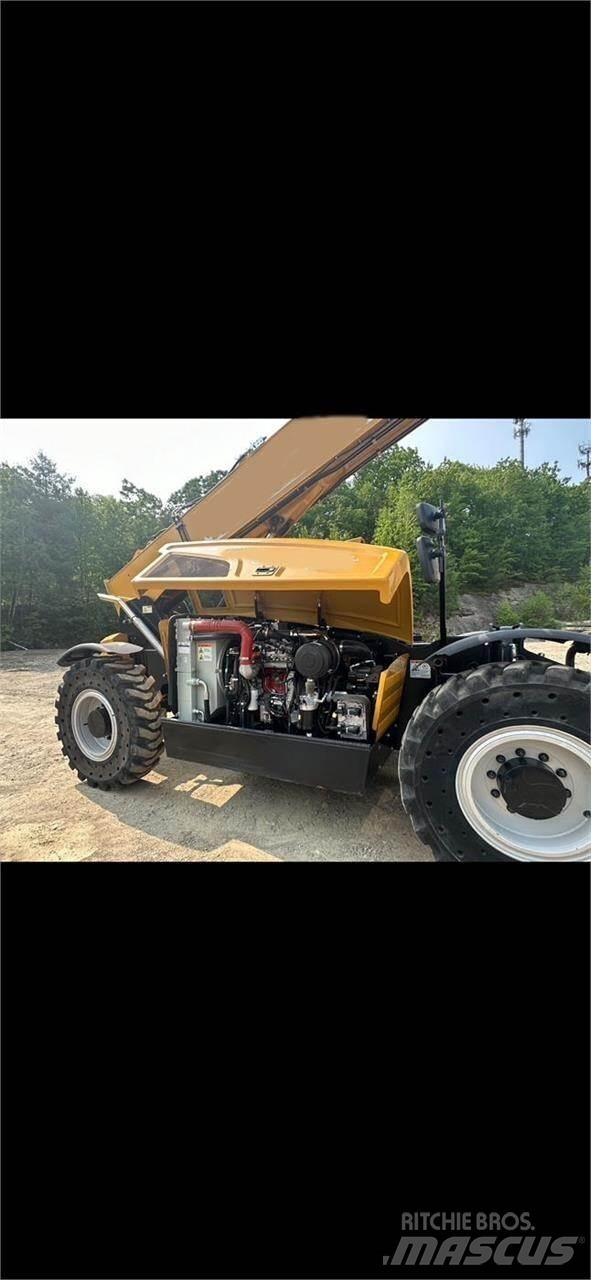

Description: (6) Used SANY America Telehandler model STH1056A (10,000lb Capacity) with all Standard equipment Spec’s: • MAXIMUM LIFT HEIGHT 56’ 2” • MAXIMUM FORWARD REACH 42’ • HEIGHT, STOWED 8’ 4” • LENGTH, STOWED (WITHOUT FORKS) 20’ • WIDTH 8’ 5” • WHEELBASE 11’ 5” • GROUND CLEARANCE (CENTER) 1’ 6” • GROUND CLEARANCE (AXLE) 1’ 6” • WEIGHT 33,290 lbs. • MAXIMUM LIFT CAPACITY 10,000 lb. 4 536 kg • LIFT CAPACITY AT MAXIMUM HEIGHT 5,000 lb. 2 267 kg • LIFT CAPACITY AT MAXIMUM REACH 3,000 lb. 1 361 kg • BOOM (RAISE/LOWER) 14 sec 11 sec • BOOM (EXTEND/RETRACT) 16 sec 15 sec • FRAME LEVELING +/- 10 degrees • MAXIMUM DRIVE SPEED 20 mph 32 kph • OUTSIDE TURNING RADIUS (4WS) 14’ 1” 4.30 m • AUXILIARY HYDRAULIC FLOW 17 GPM 63 L/min • AUXILIARY HYDRAULIC PRESSURE 2,466 psi 17 MPa • Cushioned Solid Tires (400/75-28) • POWER 130 hp • TORQUE 360 lbf • ELECTRICAL SYSTEM 24 volt • HYDRAULIC TANK CAPACITY 33 gal • HYDRAULIC SYSTEM CAPACITY (WITH TANK) 42 gal • FUEL TANK CAPACITY 36 gal Standard Features: • Cummins QSF 3.8L 130HP w/ DANA 1120 4-speed Powershift • Open Operator Cabin • DANA Powershift Transmission • Conveniently located seat side controls • Dana Planetary Axles • Intuitive Display Panel • Load Sensing Kawasaki Hydraulic Pump • Rubber Mounts to reduce Cabin Vibration • Parker Main Hydraulic Valve Handrails • Single Joystick Control • English Operator's Manual • 24V Electrical System • Boom Tip Auxiliary Hydraulics • Boom Mounted Lifting Hook • Cushioned Solid Tires (400/75-28) • Ultra-Bright LED Work lights (Front/Rear/End of Boom) • Flashing Beacon • Boom Mounted Lifting Hook • Wide Angle Rear Camera with Integrated Radar and Object Detection • Full Fender Package (All 4 Wheels) • Customer Care Package I set full filters set for general maintenance and special tool Kit, and all Manuals • Warranty Factory 1 year or 1000 hours (Whichever comes first) Options: • 60” Carriages • Forks 60” • Fully Enclosed Cab with Heat/Air Conditioning
AirConditioning: Yes
BrakeType: Yes
Coupler: Yes
EngineMake: CUMMINS
FrontFenders: Yes
Heater: Yes
Monitor: Yes
ROPSType: Enclosed
TransmissionType: Powershift
QuickAttach: Yes
Outriggers: Yes
NumForwardSpeeds: 4
NumFenders: 4Show more
