INFO

Product group
Tracked cranes
Brand / model

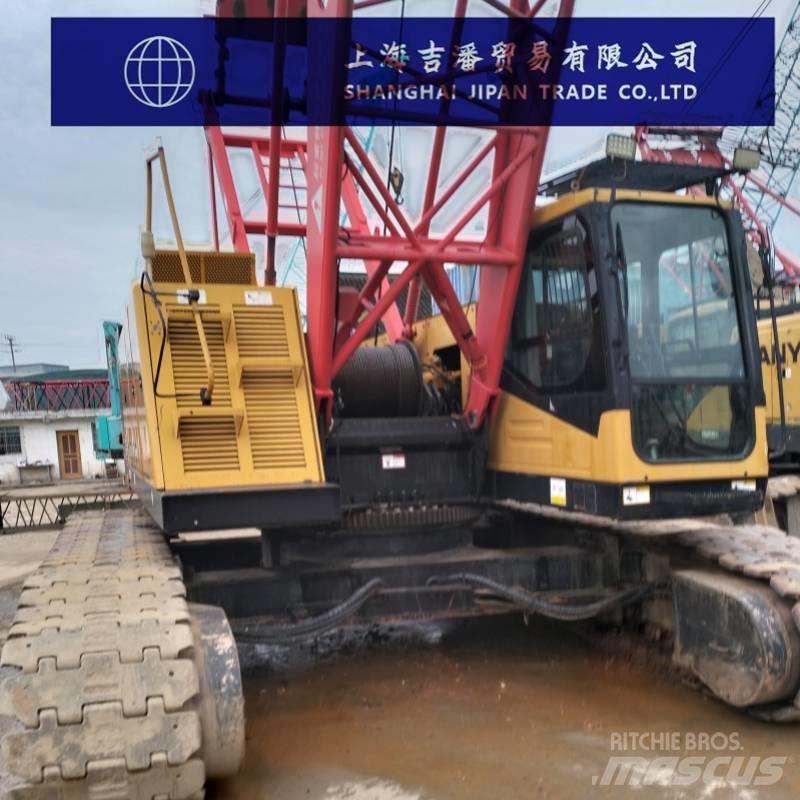

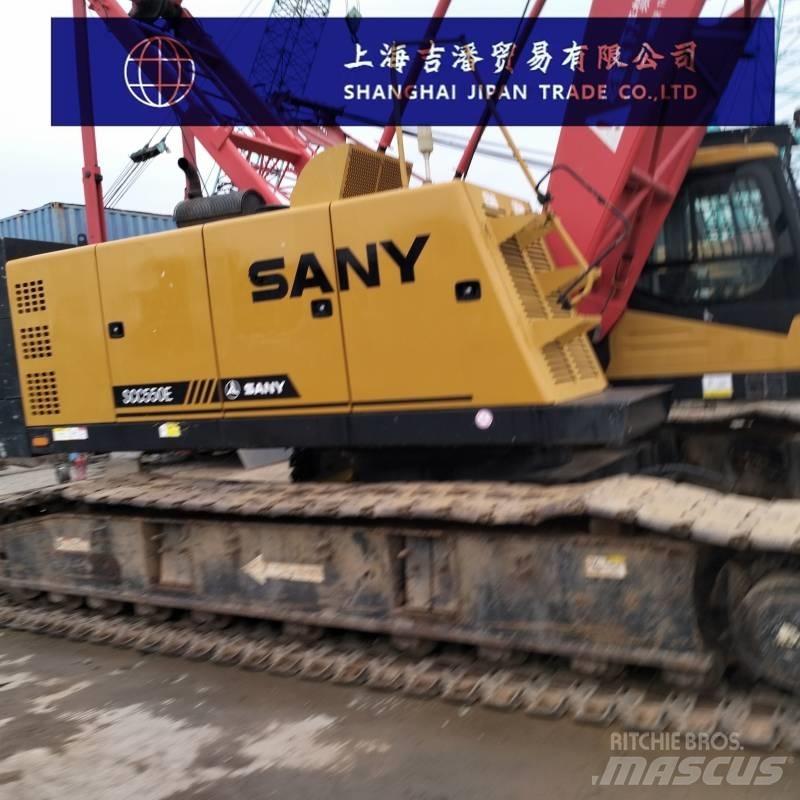

Sany SCC 550 E
Year of Mnftr
2018
Usage hours
6 000 h
Country
China
General grade
1
2
3
4
5
Mascus ID
23E778E1

PRICING

Currency Converter

DETAILS

Internal stock No.
1
Boom type
Lattice
Latest inspection/checkup date
2025-07-07
Manufacturing number
1
Amount of previous owners
1
Gross Weight
39 000 kg
Maximum lift capacity
55 000 ton
Registration number
1
Max lifting capacity at end of jib
55 000 ton
Boom length
15 m
Emission class
Stage V / Tier V
Min boom length
3 m
Min luffing jib
11 m
Luffing jib
15 m
Jib length of crane
15 m
Maximum lift height
42 m
Hook height of crane - horizontal jib
15 m
Hook height of crane - luffed jib
14 m
Original colour
Original
Engine manufacturer
Original
Carrier type
Tracked
Condition info/guarantee
1 Year
Front tyres / undercarriage remaining
98
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Other information / specs
Lifting capacity Maximum rated lifting capacity: 55 tons The maximum lifting capacity of the main boom: 55t×3.7m = 203.5t·m Arm length range Main arm length: 13-52 meters Speed parameter The speed of the main and auxiliary hoisting ropes: The working layer can reach up to 120 meters per minute at the fastest The speed of the main luffing hoisting rope can reach up to 72 meters per minute at the fastest Walking speed: 0-1.2km/h Rotation speed: 0-2rpm Engine parameters Output power/rated speed: 154kW/2200rpm Transportation parameters Maximum single-piece transportation weight (including the lower arm and the vehicle, without counterweight) : 28.5 tons Chassis parameters Working condition chassis dimensions: The outermost width is 4.5 meters and the length is 5.8 meters Transportation status: Telescopic chassis, can be transported with counterweight, the overall width of the machine is less than 3.4 meters. When transported without counterweights, the main engine weighs less than 29 tons Average ground pressure: 0.061Mpa Other parameters Equipped with ultimate load regulation and electronically controlled proportional speed control, it features excellent controllability of action and smooth operation. It is equipped with functions such as an electronic level, stop action when leaving the machine, and emergency electrical control, and is fully equipped with safety and monitoring devices. The use of a zigzag reel can effectively prevent the phenomenon of multiple layers of tangled ropes. The cab is spacious and comfortable, equipped with adjustable seats, a radio and an air conditioning system.
