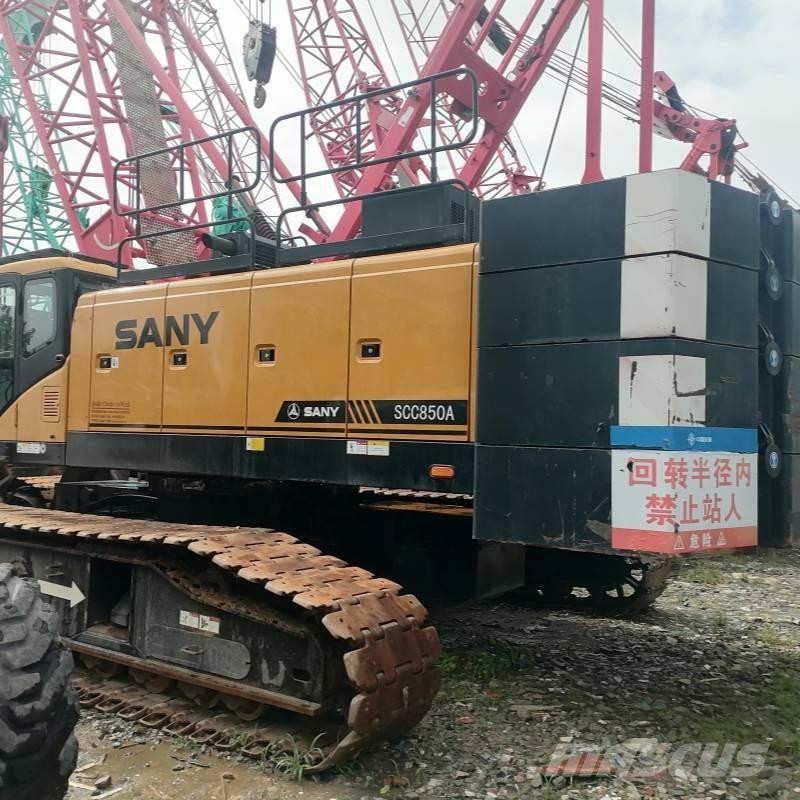

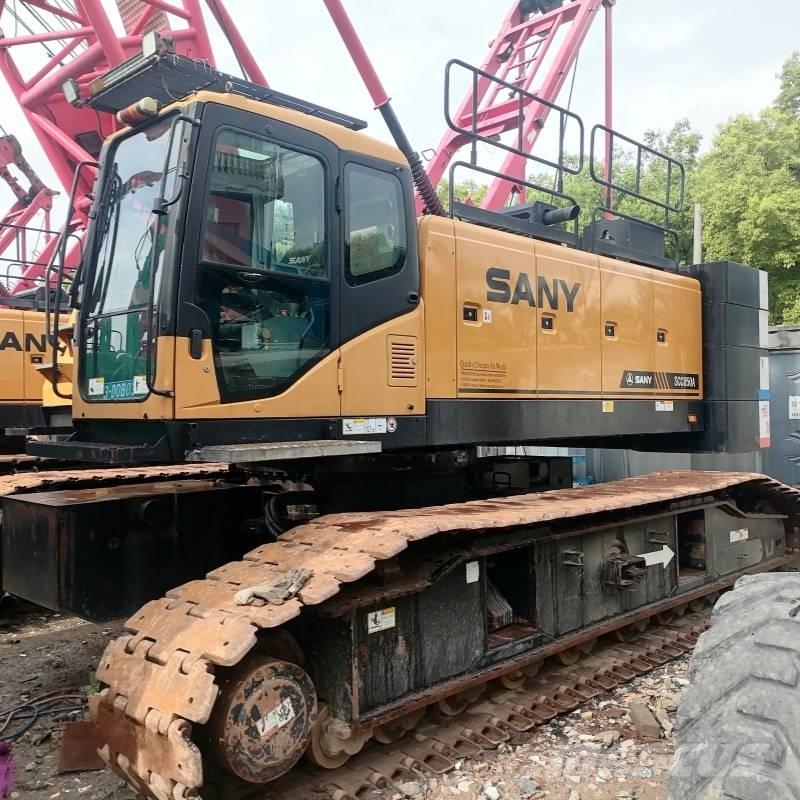

Sany SCC 850 A
Price excl. VAT
Print
INFO
Product group
Tracked cranes
Brand / model
Sany SCC 850 A
Year of Mnftr
2020
Usage hours
4 080 h
Country
China
General grade
1
2
3
4
5
Mascus ID
21C891C9
PRICING
Currency Converter
DETAILS
Boom type
Lattice
Latest inspection/checkup date
2025-11-04
Amount of previous owners
1
Gross Weight
69 000 kg
Maximum lift capacity
85 kg
Max lifting capacity at end of jib
20 kg
Boom length
47 m
Emission class
Stage V / Tier V
Min boom length
3 m
Min luffing jib
3 m
Jib length of crane
43 m
Maximum lift height
52 m
Crane type
Fixed jib
Original colour
Orginal
Transport dimensions (LxWxH)
1250034503.46 m
Engine manufacturer
Orginal
Carrier type
Tracked
Condition info/guarantee
1 Year
Front tyres / undercarriage remaining
98
Rear tyres remaining
2
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Accessories
Hook blocks
Other information / specs
起重性能:
最大额定起重量:85t
最大主臂长度:57m
副臂长度范围:9-18m
最长主臂 + 副臂:48m+18m
最大起重力矩:350t·m
动力系统:
发动机型号:潍柴 WP7
发动机类型:四冲程,水冷,直列 6 缸,直喷,涡轮增压,中冷
额定功率:221kW/2200rpm
使用功率:207kW/1800rpm
最大扭矩:1200N·m/(1400-1600)rpm
燃油箱容量:380L
液压系统:
系统最大压力:33MPa
回转系统压力:22MPa
控制系统压力:5MPa
液压油箱容量:310L
工作速度:
主、副卷扬单绳速度:0-135m/min
主变幅绳速:0-55m/min
最大回转速度:2.4rpm
最大行走速度:1.3km/h
尺寸参数:
全长:12500mm
全宽:3450mm
全高:3460mm
履带板宽度:800mm
底盘展开宽度:5050mm
轨距:4250mm
重量参数:
后配重重量:27.5t
中央配重:9.6t
最大单件运输重量:37.5
