INFO

Product group
Electric forklift trucks
Brand / model

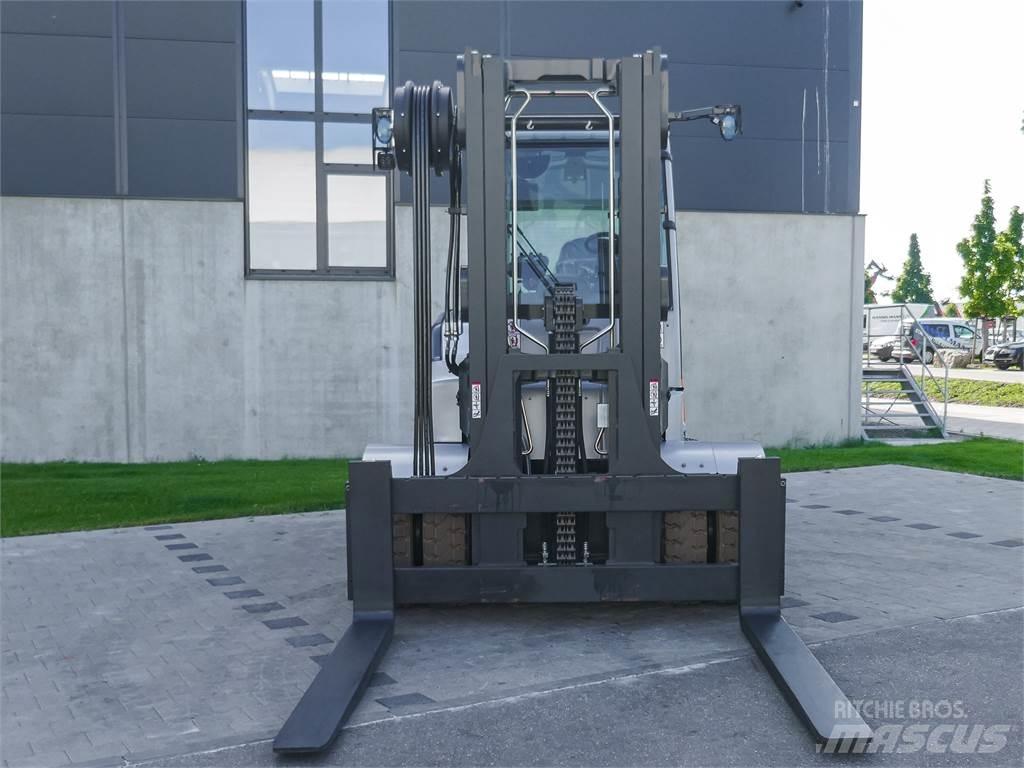

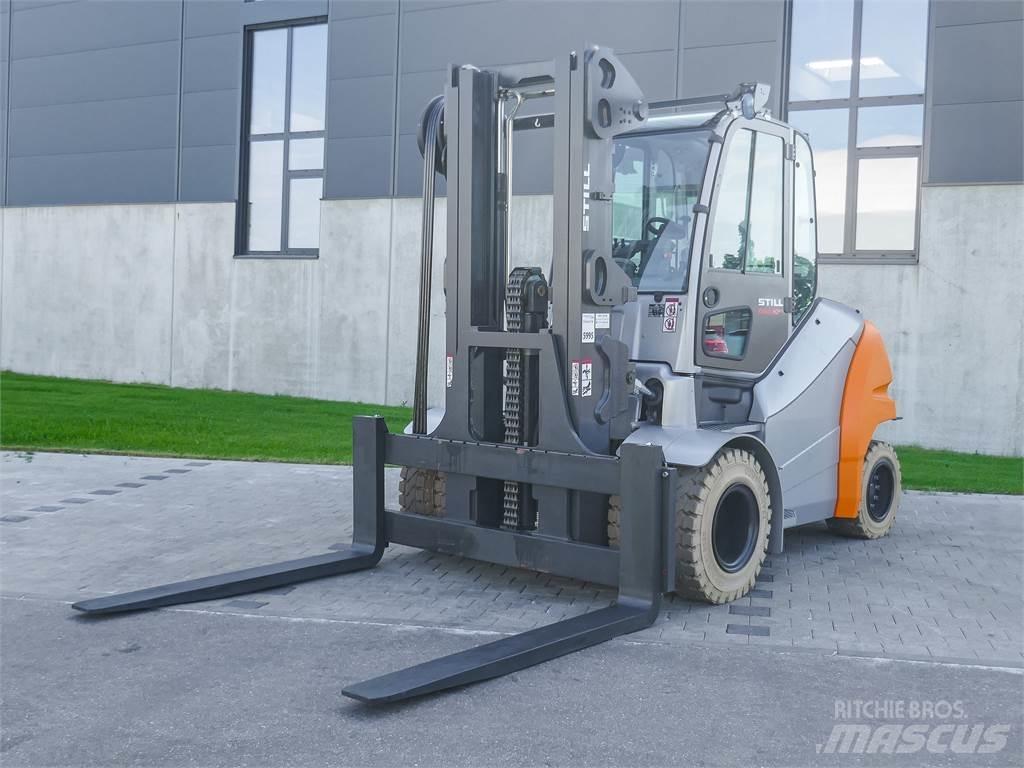

Still RX 60-80
Year of Mnftr
2023
Usage hours
74 h
Country
Germany
General grade
1
2
3
4
5
Mascus ID
8E5970AF

PRICING

Currency Converter

DETAILS

Internal stock No.
5995
Maximum lift capacity
8 000 kg
Distance of centre of gravity
900 mm
Maximum lift height
4 490 mm
Free lift
1 540 mm
Drive height
2 890 mm
Lift mast
Triplex
Fork length
2 400 mm
Cabin
Closed cabin
Engine
Electric - Elektro 19kW
engine capacity
18,4 kW (25 hp)
Transport weight
14 100 kg
Transport dimensions (LxWxH)
3420 x 2180 x 2890 mm

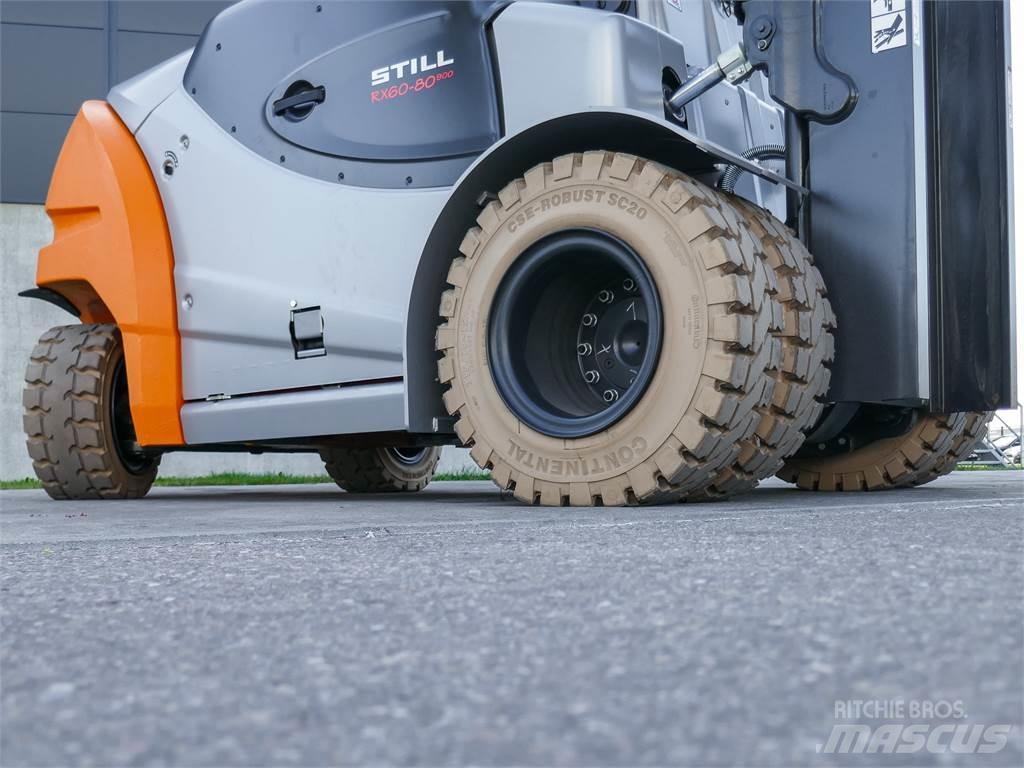

Front tyre size
315/70-15
Rear tyre size
355/45-15
Attachments
3. Ventil, 4. Ventil, Arbeitsscheinwerfer hinten, Arbeitsscheinwerfer vorn, Heizung, Vollkabine, Klimaanlage, Safety Light, Rundumleuchte,
Other information / specs
- Bedienung: Sitzgerät - Tragfähigkeit/Last: 8000 kg - Lastschwerpunktabstand: 900 mm - Achslast mit Last vorn/hinten kg 21306/2124 - Achslast ohne Last vorn/hinten kg 7097/8333 - Spurweite vorn/hinten mm 1561/1432 - Neigung Hubgerüst/Gabelträger vor/zurück α/β 5/8 ° - Höhe Hubgerüst eingefahren 2710 mm - Kupplungshöhe mm 520/670 - Gabelträger ISO 2328, Klasse/Typ A, B ISO IV A - Arbeitsgangbreite bei Palette 1000 x 1200 quer mm 4999 - Arbeitsgangbreite bei Palette 800 x 1200 längs mm 5199 - Wenderadius mm 3049 - Kleinster Drehpunktabstand mm 877 - Fahrgeschwindigkeit mit/ohne Last km/h 14/17 // 18/20 4 - Hubgeschwindigkeit 5 mit/ohne Last m/s 0,28/0,37 // 0,36/0,48 - Senkgeschwindigkeit 5 mit/ohne Last m/s 0,53/0,42 - Zugkraft mit/ohne Last N 27997/28295 - max. Zugkraft mit/ohne Last N 44000 - Steigfähigkeit mit/ohne Last % 15,5/22,5 - Max. Steigfähigkeit mit/ohne Last % 16,0/23,0 - Beschleunigungszeit (15 m) 5 mit/ohne Last s 7,9/6,8//6,9/6,1 - Betriebsbremse Mechanisch/hydraulisch - Batterie nach DIN 43531/35/36 A, B, C, nein DIN 43536 A - Batteriespannung V 80 - Batteriekapazität K5 Ah 1120 (-1240) // 1085 - Energieverbrauch 45 VDI-Arbeitsspiel/Stunde kWh/h 17,7 - Umschlagleistung 5 t/h 456 // 476 - Energieverbrauch bei Umschlagleistung kWh/h 17,2 // 21,9 - Arbeitsdruck für Anbaugerät bar 250 - Ölstrom für Anbaugeräte l/min 60 - Schalldruckpegel LpAZ (Fahrerplatz) 2 dB(A) <70 - Humanschwingung: Beschleunigung nach EN 13059 m/s² <0,7 - Anhängerkupplung, Art/Typ DIN 15170 BolzenShow more
