Other information / specs

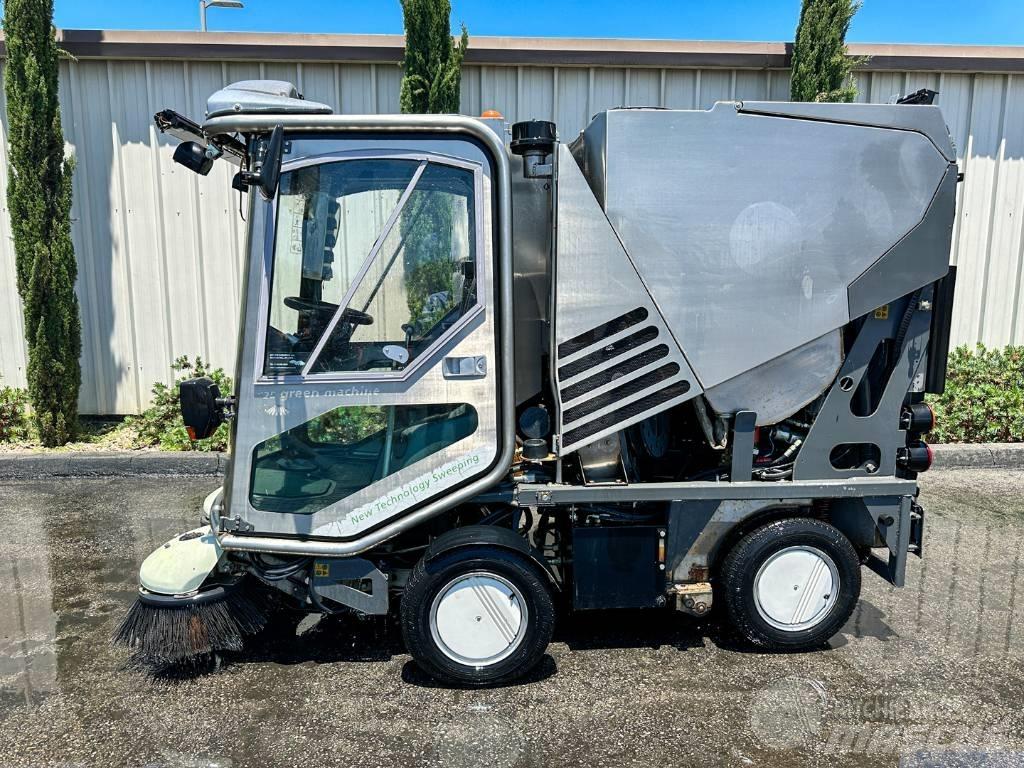

Tennant Green Machine 525 HS Ride-On Sweeter, Kubota Turbo Diesel Engine, Water Cooled, Hydrostatic Drive, Great Condition, Ready to Work!
Features:
-Great for sweeping streets, parking lots, garages, sidewalks, alleys, and more.
-Comes equipped with an economical Kubota Turbodiesel engine.
-Stainless steel hopper and frame for great durability.
-Noise level compliant for a comfortable ride.
-Designed for ease of use.
Dimensions:
-Length – overall (including brushes): 123 in.
-Length – over body: 108 in.
-Width – over body: 43.3 in.
-Width – over wheels with track extended: 52.8 in.
-Height – (excl. folding beacon): 78 in.
-Wheelbase: 47.2 in.
-Front wheel track is variable: 37.4 in to 46.9 in.
Weight:
-Curb Weight: 3,390 lb
-Payload: 992 lb
-Gross Vehicle Weight: 4,382 lb
Engine:
-Make: Kubota
-Model: DD1105T
-Cylinders: 3
-Cooling: Water Cooled
-Induction: Turbo
-RPM: 2400 - 2800
-HP: 31.3
-Displacement: 1,123cc
-Engine Oil Capacity: 5.1L (15W40 API CF4/ACEA 2)
-Engine Coolant: 10L (50/50 mix of Ethylene Glycol Permanent)
-Fuel: Diesel
-Fuel Grade: 45 minimum cetane rating. Low Sulphur (below 0.05%)
-Fuel Tank Capacity: 9.5 gal
Speed Modes:
-Transit Mode: 20 mph
-Sweeping Mode: 8 mph
-Reverse: 4 mph
Noise:
-Complies with in-cab noise levels in accordance with 98/37EC and the sound power measurement to 200/14/EC is 107dBLwa.
Suction System:
-High flow, through fan suction system with cyclonic dust separation. Twin contra-rotating floating brushes with in-cab adjustment of height, and independent joystick control of brush swept path width.
Dust Suppression System:
-Electric Pump: 12V, 5L/min
-Twin Water Tank Capacity: 45 gal
-Mesh Filtration System with fast-dump drain.
Brushes:
-Diameter: 23.6 in
-Min. Swept Track: 47.2 in.
-Max. Swept Track: 70.9 in.
Wheels & Tires:
-Tire Size: 145R12*8 Ply Tires
-Wheels: 4.55
-Inflation Pressure: 65 psi (Fitted with thorn guard anti-puncture liners)
-Wheel nut tightening torque:74 to 77 lb. Ft
Hopper:
-198 gal
-Clearance for tipping: 55 in.Show more
